30kHz 1200A AC DC Pulse Current Measurement Sensor

MOQ : 100

Payment Terms : T/T

Delivery Time : 1-12 weeks

Packaging Details : Original packing

Maximum range : 800A~1200A

Storage temperature : -40 - 125

Zero output : 2.5V

Sensitivity error : ±1%

Proportional error : 0.5%

bandwidth : 30

Contact Now

NACA.XXXQ-S6 / VA Current Transducers

Product description

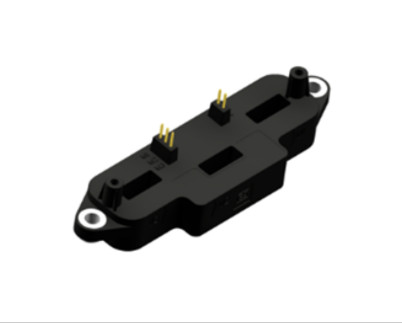

NACA xxxq-s6 / VA Series triple current sensor is suitable for accurate isolation measurement of AC, DC and pulse current. The primary side and secondary side are completely insulated during measurement.

Product Info

performance requirement
Parameter name	Symbol	Unit	Parameter name			condition
Parameter name	Symbol	Unit	minimum value	Typical value	Maximum	condition
Electrical parameters
Maximum range	IP	A	800A~1200A			For more details, please contact CRRC
Storage temperature	TS	℃	-40		125
supply voltage	UC	V	4.75	5	5.25
Output voltage (linear)	Vout	V	Vout=(Uc/5)·(V0+G·Ip)			@UC
sensitivity	G	mV/A	2000/Ip			@UC=5V
Zero output	VO	V		2.5		@UC=5V
Current consumption	IC	mA		39	45	@ UC=5V,No load on Vout
Load resistance	RL	KΩ	4.7	10
Load capacitance	CL	nF			4.7
Output internal resistance	ROUT	Ω			10	DC
performance parameter
Zero output error	X0	%	-0.75		0.75	@TA=25℃,@UC=5V
Zero output error	X0	%	-1		1	@-40℃＜TA＜125℃,@UC=5V
Sensitivity error	εG	%		±1		@TA=25℃,@UC=5V
Sensitivity error	εG	%		±2		@-40℃＜TA＜125℃,@UC=5V
Electric zero shift	VOE	mV		±4
Magnetic zero shift	VOM	mV		±3
Proportional error	ɛR	%		0.5
Linearity error	εL	%	-1		1	of full range
response time	tr	μs			7
bandwidth	BW	kHz	30			@-3dB
phase difference	∆φ	°	-4			@DC to 1kHz

Dimensional drawing

Series size

30kHz 1200A AC DC Pulse Current Measurement Sensor
